Green Roof Systems

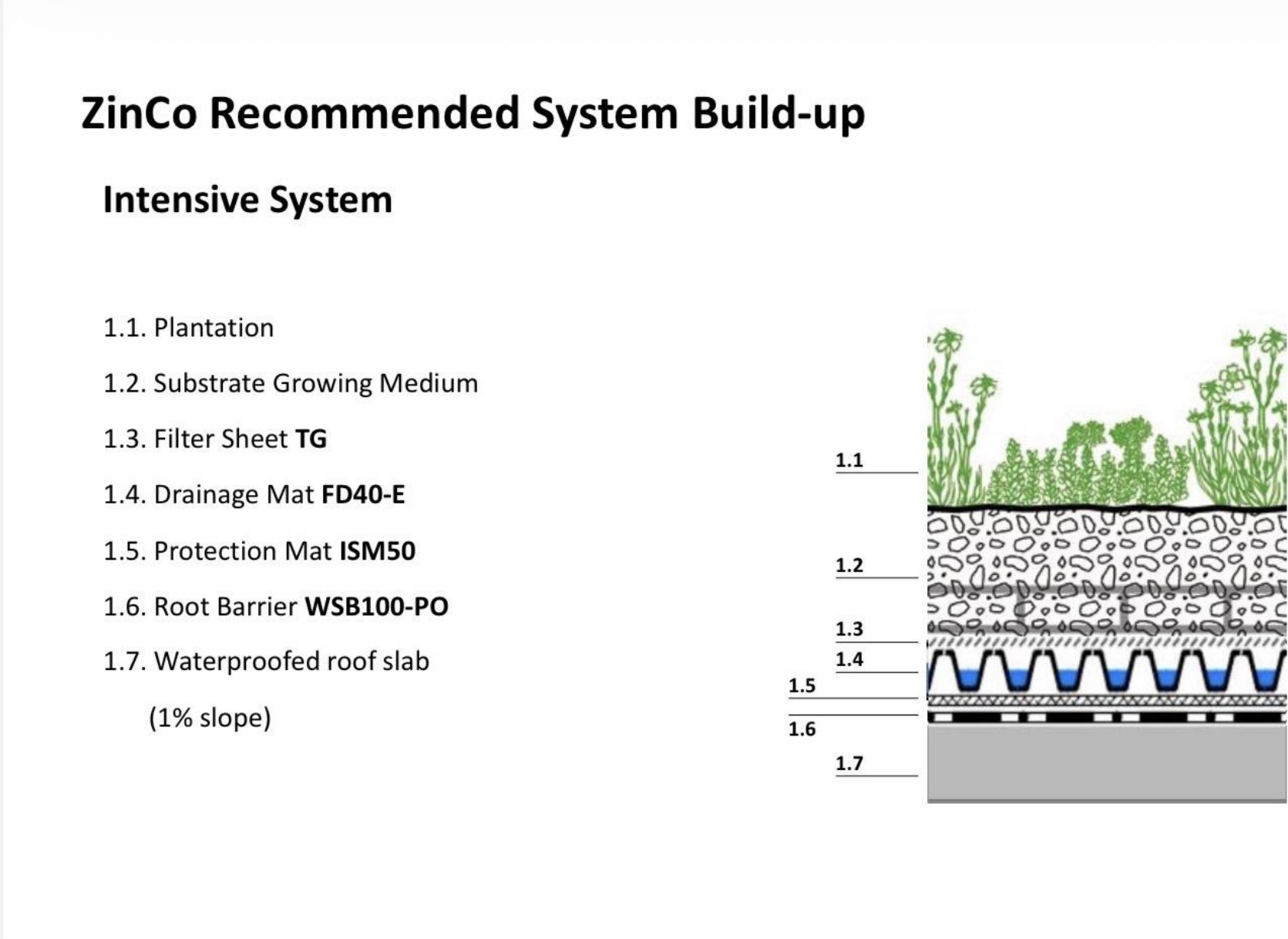

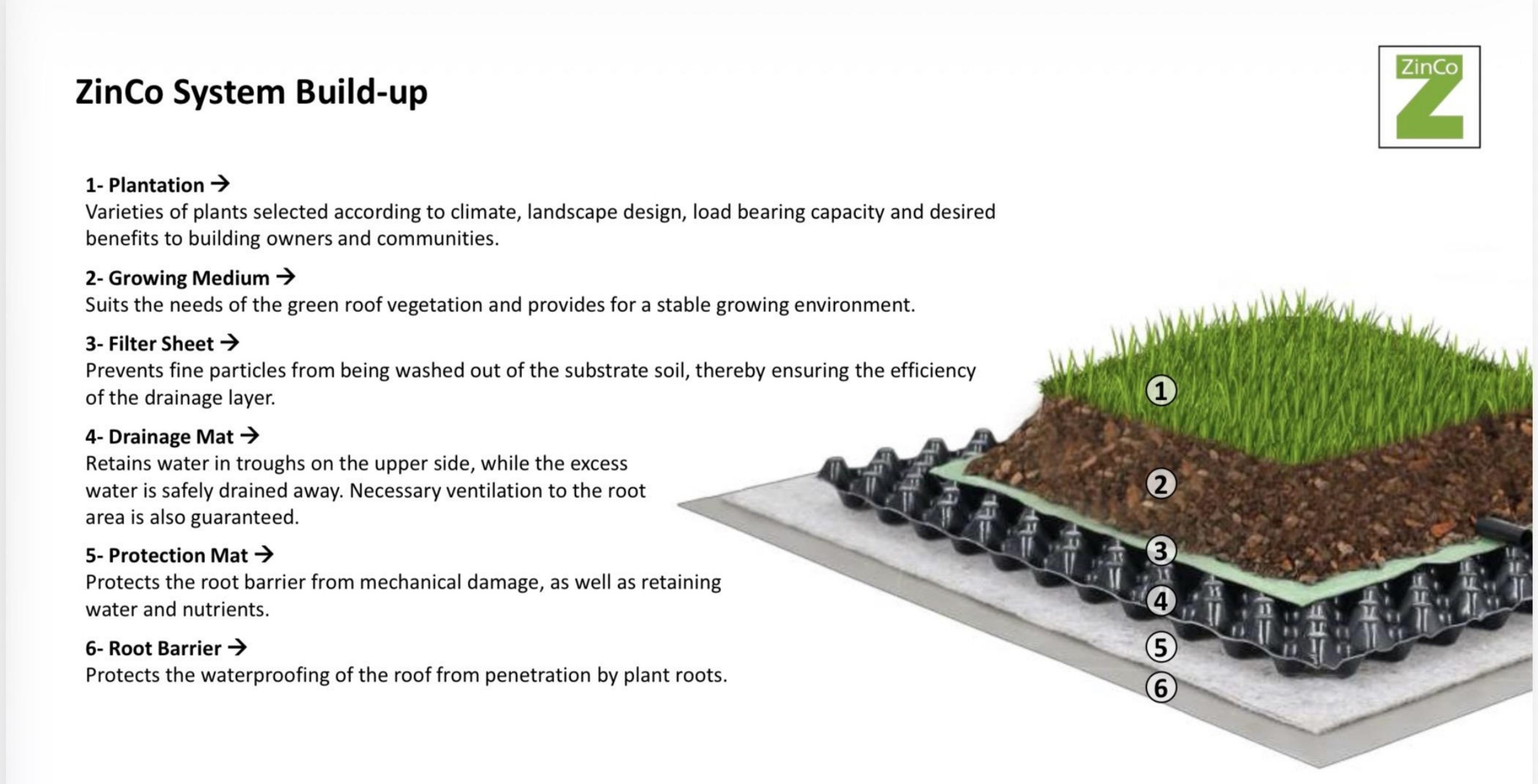

ZinCo System Build-up

1. Plantation — Varieties of plants selected according to climate, landscape design, load bearing capacity and desired benefits to building owners and communities.
2. Growing Media — Suits the needs of the given roof vegetation and provides for a stable growing environment.
3. Filter Sheet — Prevents fine particles from being washed out of the substrate soil, thereby ensuring the efficiency of the drainage layer.
4. Drainage Mat — Retains water in troughs on the upper side, while the excess water is safely drained away. Necessary ventilation to the root area is also guaranteed.

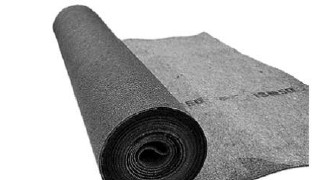

5. Protection Mat — Protects the root barrier from mechanical damage, as well as retaining water and nutrients.
6. Root Barrier — Protects the waterproofing of the roof from penetration by plant roots.
